Product Description

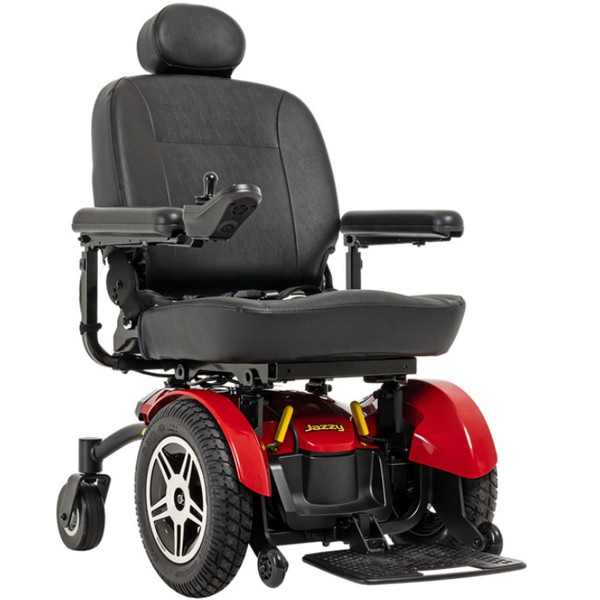

Comfort, design and power - the Jazzy® Elite 14 Power Wheelchair provides it all. A high-back seat for comfort and and large wheels for control show that Pride Mobility has your health and wellness in mind. 300-lb capacity and up to 18 hours on a single charge. Please contact us today for assistance in selecting the correct electric wheelchair for your needs.
Jazzy® Elite 14 Power Wheelchair Features:
- 300 lbs. weight capacity
- Up to 4 mph maximum speed
- 24" turning radius
- Up to 18 miles per charge at 300 lbs., Up to 21 miles at 200 lbs.
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- Easy rear access to batteries
- Intuitive controller is easy to operate
- Angle-adjustable foot platform offers greater comfort
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color-through shroud
- 40A Dynamic Linx controller
- Extended 13-month limited warranty
- HCPCS Code: Group 2: Standard (K0822/K0823)
Jazzy® Elite 14 Power Wheelchair Specific Features:
| Model |
Jazzy® Elite 14
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5"/42.5" (with footplate) |
| Maximum Speed3 | Up to 4.0 mph |
| Ground Clearance1 | 3" at battery tray |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" foam filled |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 22"W x 22"D |
| High-Back Seat-to-Floor Range | 20” – 22” |
| Synergy® Seating | 20”W – 20”D |
| Synergy® Seat-to-Floor Range | 15.75” – 17.75” |
| Standard Electronics | 40A Dynamic LiNX |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,6 | Up to 18 miles at 300 lbs., Up to 21 miles at 200 lbs. |
| Battery Weight5 | 37.5 lbs. each |
| Weight of Heaviest Piece4 | 99 lbs. |
| Standard Seat Weight | 18" wide - 51.8 lbs. 20" wide - 54 lbs. 22" wide - 57.6 lbs. |
| Standard Seat Size | 18" x 18"-20" 20" x 18"-20" 22" x 20"-22" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
