Product Description

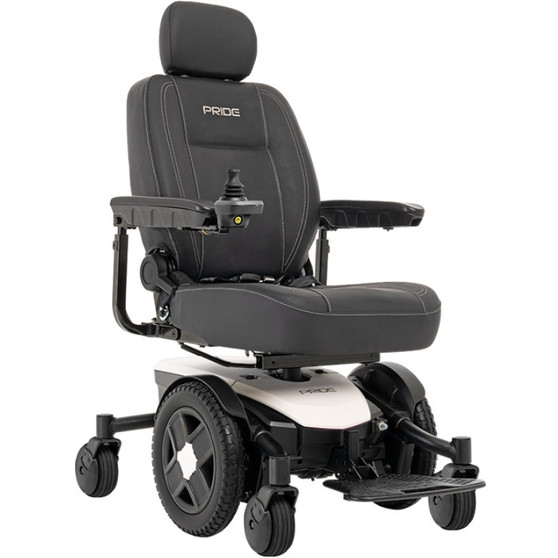

The Jazzy® EVO 613 Li features a lithium ion battery providing a long life - up to 21 miles on a single charge! It is also Medicare reimbursable. Combine this with a 5.1 mph maximum speed and 22" wide base - Pride Mobility has shown again why they are an industry leader. Other specifications include a 300-lb capacity and 13" solid drive tires. Please contact us today for assistance in selecting the correct electric wheelchair for your needs.
Jazzy® Select Power Wheelchair Features:
- 300 lb. weight capacity
- Narrow base width of only 22"
- Maximum speed up to 5.1 mph
- 3" Ground clearance
- 13" solid drive tires
- Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)
- Mid-wheel 6® Technology offers tight turning radius around doorways and corners
- Pride's patented Active-Trac® (ATX) Suspension ensures a smooth ride experience over uneven surfaces
- Memory foam high-back seat with single seat post allows the user to swivel
- Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"
- Height, width, and angle adjustable armrests
- Flip-up, height, angle, and depth adjustable foot platform
- Removable matte-finish color-through shrouds
- HCPCS Code: Group 2: Standard (K0822/K0823)
Jazzy® Select Power Wheelchair Specific Features:
| Model |
Jazzy® EVO 613/ Jazzy® EVO 613 Li
|
| Weight Capacity | 300 lbs. |
| Turning Radius3 | 22" |
| Width3 | 22" |
| Length3 | 41" w/footplate 35" w/o footplate |
| Maximum Speed2 | Up to 5.1 mph |
| Ground Clearance3 | 3" at motor bracket |
| Front Wheels | 5" solid |
| Drive Wheels | 13" solid |
| Rear Wheels | 5" casters |
| Drivetrain | Two motor, in-line, mid-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Active-Trac® (ATX) |
| Standard Seat Sizes | High-back Black vinyl 16"x16"-18", 18"x18"-20", 20"x18"-20" |
| Seat-to-Floor Range | 19.75"-21.25" |
| Seat Weight(s)3 | 46 lbs. (16"), 48 lbs (18"), 50 lbs. (20") |
| Maximum Seat Size | 20"-20" |
| Power Elevating Seat | NA |
| Standard Electronics | 40A, PG GC3 |
| Battery Size(s)4 | (2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate |
| Battery Weight6 | (2) U1-23.5 lbs. each; (1)Lithium - 18.5 lbs. |
| Battery Charger | 3.5A, off-board |
| Per Charge Range2,3,5 | SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200lbs,); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200lbs.) |
| Weight of Heaviest Piece7 | 94 lbs. (base) |
| Total Weight | 189 lbs. . (SLA); 160.5 (Lithium) |
| HCPCS Code | Group 2: Standard (K0822/K0823) |
| Warranty | Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium) |
| Colors | Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte) |
| Notes: 1Jazzy® Power Chairs are FDA class II Medical Devices designed to aid individuals with mobility impairments 2Varies with user weight, terrain type, battery amp-hour(AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 3Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+/* 3%). 4AGM or gel cell type required. 5Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 6Battery weight may vary based on manufacturer. 7Weight includes base, seat and batteries. |
|
HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement The information contained herein is correct at time of publication; we reserve the right to alter specifications without prior notice. NOTE: All specifications subject to change without notice. The information contained herein is correct at the time of publication, we reserve the right to alter specifications without prior notice. |
