Product Description

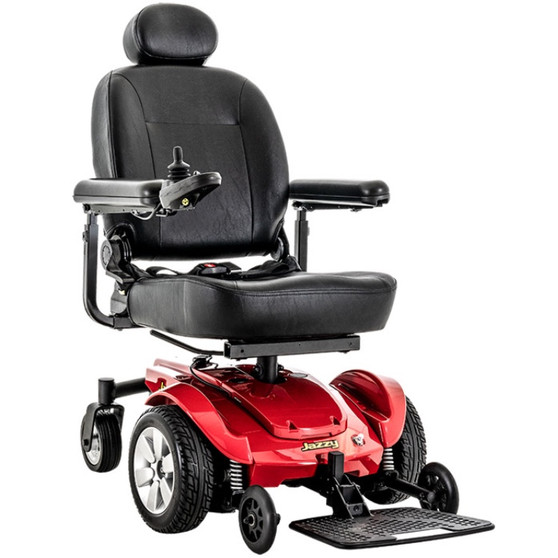

The Jazzy® Select's tight turn radius and smooth ride allow you to maneuver tight spaces with ease. With over 19 hours of battery on one single charge Pride Mobility ensures a full day or comfortability. Other specifications include a 300-lb capacity and maximum travel speed up to 4.3 mph. Please contact us today for assistance in selecting the correct electric wheelchair for your needs.
Jazzy® Select Power Wheelchair Features:
- 300 lbs. weight capacity
- Up to 4.3 mph
- 22.5" turning radius
- Up to 19.4 miles per charge
- Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
- Mid-wheel drive offers tight turning radius around doorways and corners
- Comfortable, depth adjustable, limited recline comfort high-back with headrest
- Dual, in-line motors provide greater performance, range and efficiency
- Intuitive controller is easy to operate
- Easy side access to batteries
- Height and depth adjustable foot platform, offering two positions of height and one position of depth
- HCPCS Code: Group 2: Standard (K0822/K0823)
Jazzy® Select Power Wheelchair Specific Features:
| Model |
Jazzy Select®
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 22.5" |
| Width1 | 23.75" |
| Length1,2 | 32.99"/44" (with footplate) |
| Maximum Speed3 | Up to 4.3 mph |
| Ground Clearance1 | 0.75" at motor bracket |
| Front Wheels | 5" solid casters |
| Drive Wheels | 10" solid |
| Rear Wheels | 6" solid |
| Drivetrain | Two motor, mid-wheel® drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Active-Trac® |
| High-Back Seat | 16"x16"-18", 18"x18"-20", 20"x18"-20" |
| High-Back Seat-to-Floor Range | 21” – 22” |
| Seat Weight | 50.2 lbs. |
| Standard Electronics | 40A, PG GC34 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,8 | Up to 19.4 miles |
| Battery Weight7 | 25.2 lbs. each |
| Weight of Heaviest Piece5 | 94 lbs. |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| HCPCS | Group 2: Standard (K0822/K0823) |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 40A, PG 6-key VR2 required with Power Elevating Seat Option. 5 Does not include seat or battery weights. 6 Not available with TRU-Balance?. 7 Battery weight may vary based on manufacturer. 8 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
