Product Description

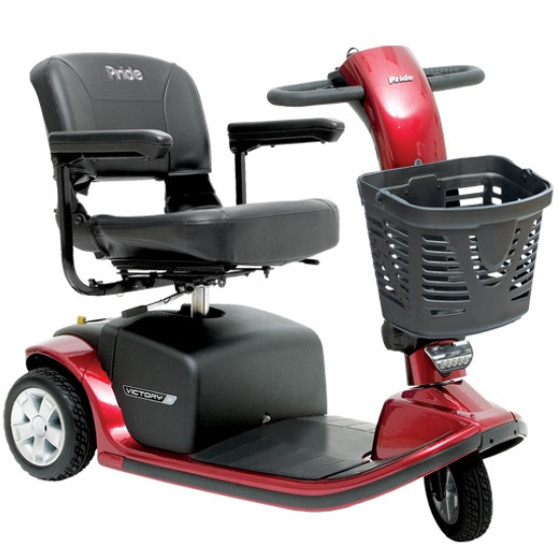

Operate with one hand thanks to a delta tiller - the Victory® 9 3-Wheel Mobility Scooter - Model S609 also includes LED lighting. Coupled with multiple features and speeds up to 5.3 mph Pride Mobility has your comfort in mind. Please contact us today for assistance in selecting the correct scooter for your needs.
Victory® 9 3-Wheel Mobility Scooter - Model S609 Series Features:
- 300 lbs. weight capacity
- Up to 5.3 mph maximum speed
- 40.25" turning radius
- Up to 13 miles per charge
- 18" x 17" Pinchless hinge, black vinyl seat with 8-point swivel and sliders for increased comfort
- Feather-touch disassembly
- Easy-to-grip tiller adjustment knob
- Exclusive stylish, lightweight, non-scuffing, black, low-profile tires
- Delta tiller
- Crush proof front basket
- Easy-to-read Ambient Voltmeter
- Long-lasting, maximum-intensity LED headlight offers optimal pathway illumination
- Auto connecting front to rear harness
- Easy access tiller-mounted charger port
- HCPCS Code: K0800 - Group 1 Standard
Victory® 9 3-Wheel Mobility Scooter - Model S609 Specific Features:
| Model |
Victory 9 3-Wheel
|
| Model Number1 |
S609
|
| Number or Tires | 3 |
| Front Tires2 | 3"x8" |
| Rear Tires2 | 3"x9" Solid |
| Maximum Speed8 | Up to 5.3 mph |
| Ground Clearance2 | 1.8" at transaxle; 2.7" at side deck |
| Turning Radius2 | 40.25" |
| Length2 | 43.5" |
| Width2,4 | 22.25" |
| Seat-to-Ground Height Range2 | 22.5"-24" |
| Seat-to-Deck Range2 | 17.25"-18.75" |
| Standard Seat Type | Compact, Foldable; Materal: Black Vinyl; Seat Size2: 18"x17" |
| Weight Without Batteries2 | 117 lbs. |
| Weight With Batteries | 165 lbs. |
| Weight of Heaviest Piece2 | 48.5 lbs. (front section) |
| Battery Weight6 | 24 lbs. |
| Battery Requirements7 | (2) U1 |
| Per Charge Range (max)8,9 | Up to 13 miles |
| Battery Charger | Off-board, 3.5A (U1) |
| Suspension | NA |
| Maximum Weight Capacity | 300 lbs. |
| HCPCS Code | K0800-Group 1 Standard |
| Warranty | Lifetime limited on frame; 2-year limited on electronics; 2-year limited on drivetrain |
| Color Options | Candy Apple Red |
| 1Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. 2Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3% 3Width of base (not including seat). 4Battery weight not included. 5Includes standard seat weight. 6Battery weight may vary based on manufacturer. 7Deep cycle (AGM or gel cell type recommended). 8Varies with user weight, terrain type, battery amp- hour (AH), battery charge, battery condition and tire condition. This specification can be subject to a variance of (+ or -) 10%. 9Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
|
